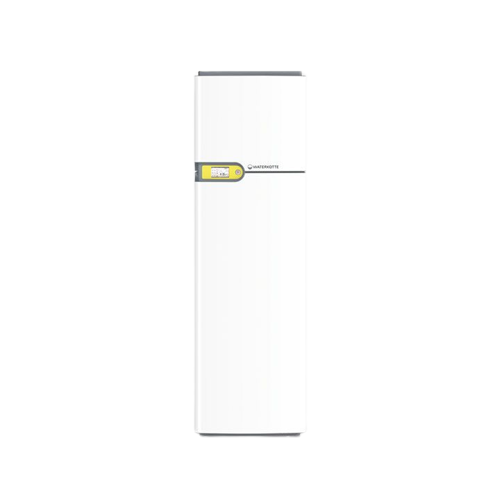

Geothermal Heat Pump
- Compact geothermal heat pump
- 4.3-inch color touch screen
- Integrated web interface for remote monitoring
- Intuitive Easi Con control software
- Sensor system with numerous sensors
- COP meter and display of all operating data
- Stainless steel domestic hot water tank with a capacity of 204 liters
- Automatic legionella protection circuit
- Chlorine-free refrigerant R410A with no ozone depletion
- Speed-controlled circulation pumps of efficiency class A
- Integrated 6kW electric heating element
- Encapsulated thermal box with special sound insulation
- Integrated Silenter ® vibration damper
- Modular design for optimized transport and installation
- Service-friendly unit design
- Connections installed at the rear
- Unit dimensions: (W x H x D) 600 x 1993 x 633 mm
- Reduced space requirement of 0.38 m2
Technical Characteristics
- Connection set
- Starting current limitation (400 V)
- Controller extension for:
- Second heating circuit e.g. for pool heating
- Use of solar thermal energy
- Additional mixer circuits
- Low operating costs due to COP values of up to 5.1
- Touch screen with Easi Con software
- Fully integrated into the Internet
- Smartphone control via Easi Con Mobile
- Indication of the actual COP value
- Silenter® vibration damper
- Multi-award-winning design

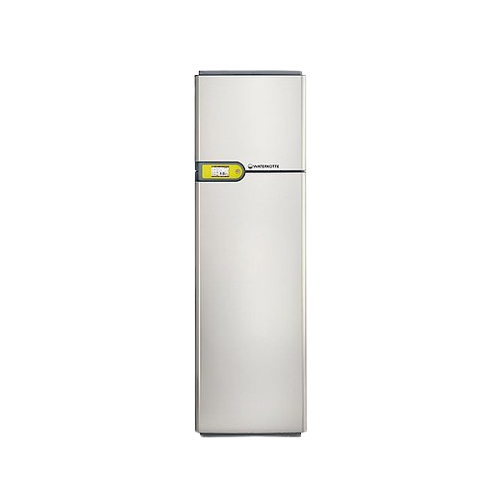

- Housing in high-gloss white or stainless steel look
